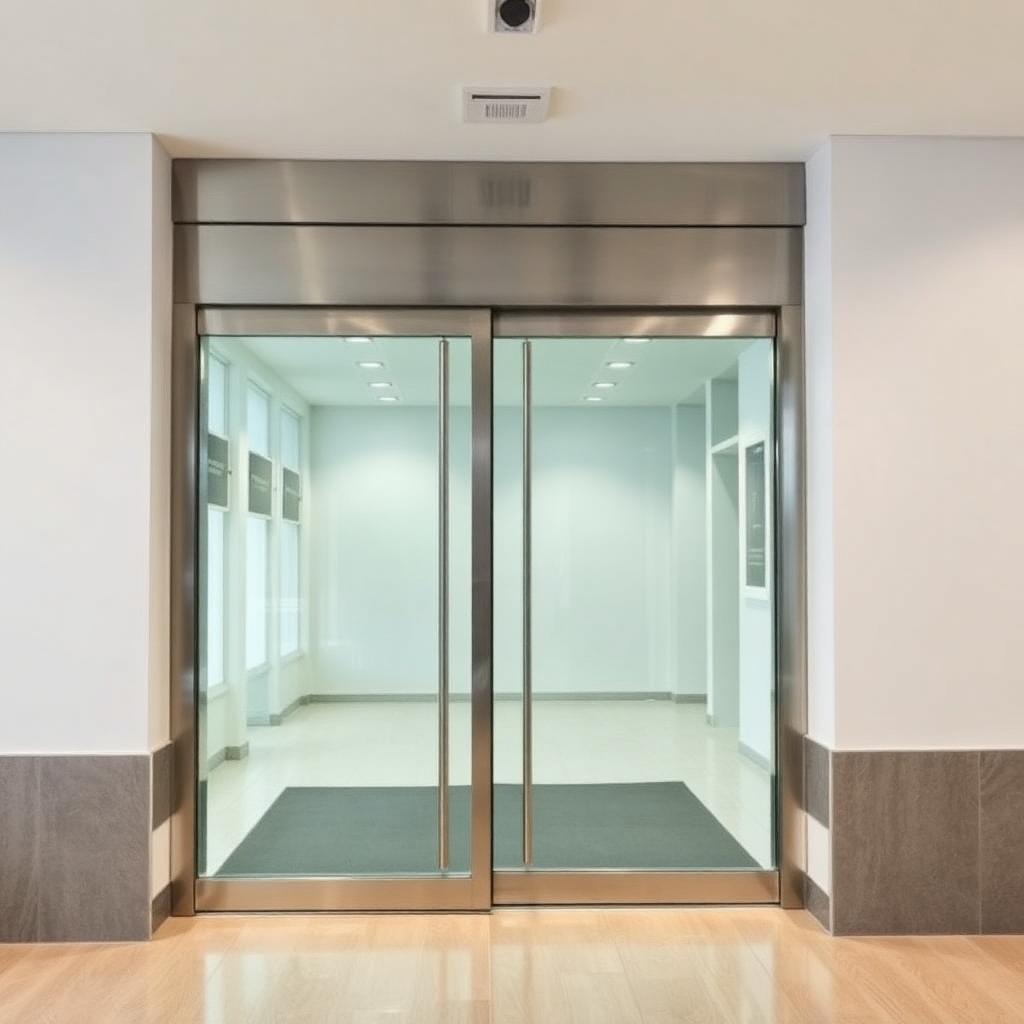

Automatic Glass Doors
Sensor-driven sliding glass door systems for showrooms, offices, clinics and retail — safe, silent and ready to integrate with your access control.
PIR + remote
Auto-open on approach, plus pairing for up to 100 remote controllers.
Safe 24V DC
Low-voltage motor with overload sensor — instant stop on obstacle.
Soft start & stop
Smooth acceleration and buffer distance for quiet, long-life operation.
Access-control ready
Integrates with RFID, biometric and most third-party access systems.
Auto Glass Door Set
A complete surface-mounted kit for single or bi-party sliding glass doors, supplied with everything needed for a clean, ready-to-run installation.
- 1 controller
- 1 motor (24V DC, 60W)
- 2 PIR sensors
- 2 remote controllers
- 7 m drive belt
- 1 tension pulley device
- 1 power switch
- 2 stoppers
- 4.2 m cover & 4.2 m track
Key features
- Open and close single or both doors, with sequence adjustment
- Opening / closing force and speed adjustable on-site
- Soft start, soft stop and buffer distance control
- Overload sensor stops the door on contact with an obstacle
- Adjustable hold-open time (0–8 s)
Technical specifications
Open styleSingle or bi-party
InstallationSurface mounting
Door leaf weight< 100 kg (per leaf)
Door leaf width700–1300 mm / 600–1250 mm
Motor24 V DC, 60 W
Opening speed150–450 mm/s
Closing speed100–430 mm/s
Hold-open time0–8 s
Manual force< 42 N
PowerAC 200–250 V, 50–60 Hz
Ambient temperature−20 °C to +50 °C
Suitable forModerate & heavy commercial use
Planning an entrance upgrade?
Share your door opening dimensions and traffic type — we'll recommend the right configuration and a free on-site survey.
